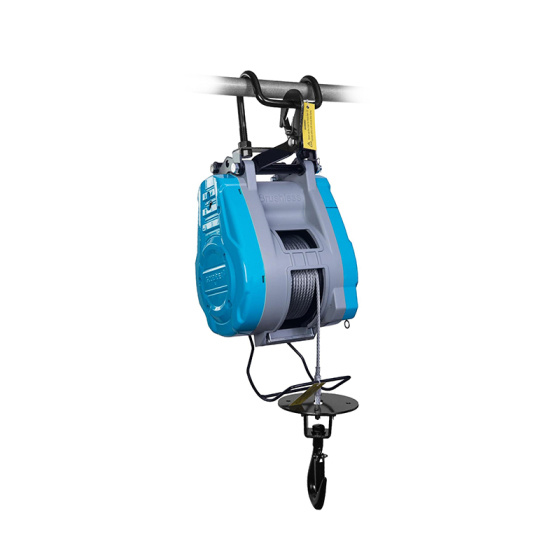

Model.BL340 MINI BRUSHLESS ELECTRIC WINCH

capacity: 340kg

Three questions decide whether a winch earns its place on site: what it weighs, how often it needs repair, and whether it will run from the power that happens to be available. This unit answers all three, and it does so while keeping cost down.

Where it is used
Structural members, curtain-wall glass and advertising boards, plus other materials moved in storage or freight transportation. Compact in structure, light in weight, efficient in work, and simple to connect to a power supply.

Item	Specification
Model	BL340
Voltage/frequency	220V 50/60Hz
Speed	6-17m/min
Wire rope	60m (5mm × 60m)
Motor	2400W
Rated Load	340kg
Net weight	23kg

Model.BL340 Mini Brushless Electric Winch is a 340kg single-phase electric winch for structural members, curtain-wall glass, advertising boards and other materials moved in storage or freight transportation. It runs on 220V 50/60Hz, lifts at 6-17m/min, carries 60m of 5mm wire rope and has a net weight of 23kg. GOODIDEA lists it as the 340kg step of its Brushless Mini Electric winch category, and this article looks at the numbers behind the model and how it compares with the BL260.

Three Questions That Decide a Winch's Place on Site

The product page from GOODIDEA frames the BL340 around three questions: what a winch weighs, how often it needs repair, and whether it will run from the power that happens to be available. The answers for this unit are listed below.

Question	BL340 answer
What does it weigh?	23kg net weight for a 340kg rated load
How often does it need repair?	Industrial grade permanent-magnet brushless motor that is hard to damage, plus dual braking and a limit switch
Will it run from available power?	220V 50/60Hz listed, with 110V and 220V single phase both offered, and plug and pull wiring

BL340 Specifications

Item	Specification
Model	BL340
Voltage/frequency	220V 50/60Hz
Speed	6-17m/min
Wire rope	60m (5mm x 60m)
Motor	2400W
Rated Load	340kg
Net weight	23kg

BL340 Against BL260

Buyers who are choosing inside the brushless line often compare these two models. GOODIDEA publishes both on the same specification layout, which makes the differences easy to read. The BL340 lifts 80kg more than the BL260, about 31 percent higher capacity, and it adds 300W of motor power, 6kg of net weight and a rope that is 30m longer. The BL260 keeps the faster top speed at 19m/min against 17m/min.

Item	BL260	BL340
Speed	7-19m/min	6-17m/min
Wire rope	30m (5mm x 30m)	60m (5mm x 60m)
Motor	2100W	2400W
Rated Load	260kg	340kg
Net weight	17kg	23kg

Where It Is Used

The BL340 handles structural members, curtain-wall glass and advertising boards, plus other materials moved in storage or freight transportation. It is described as compact in structure, light in weight, efficient in work and simple to connect to a power supply, and GOODIDEA adds that it does all of this while keeping cost down. With a 60m rope, the model suits jobs where the load travels a longer distance than a 30m rope would allow.

Special Features

The motor is industrial grade and hard to damage. A permanent-magnet brushless motor sits at the centre of the machine, and both single-phase options, 110V and 220V, are supplied. High power and high efficiency allow long time working, protection extends to temperature and overload, and speed is set stepless. The enameled wire is rated to 200 degrees Celsius, and the payoff is working capacity 50 percent above the ED series.

The control circuit avoids capacitors entirely. SCM control replaces the capacitor bank, so performance stays stable and the power factor high, and plug and pull wiring makes operation convenient and maintenance reliable.

Double Braking and the Limit Switch

Mechanical ratchet braking is paired with resistive short-circuit control, so a dual braking system acts on the drum. The sintered brake runs a high friction coefficient, which keeps the motor durable, and power failure or winch failure produces immediate braking. At a certain lifting height, or on a reversed wire rope, the limit switch triggers, protects the machine and halts work. GOODIDEA builds these protections into the BL340 as standard features.

Rope, Gears and Housing

Component	What is stated
Wire rope	Top brand imported, safety factor of 4 times ordinary machines
Reduction gear	High efficiency bevel drive with special heat treatment, strength three times that of ordinary products
Housing	Motor and gearbox share a one-piece aluminum alloy die-casting of strong toughness
Machining	High precision CNC machining for smooth running and low noise
Finish	Powder coating to automobile grade, compact overall

Frequently Asked Questions

QHow long is the wire rope on the BL340?

The wire rope is 60m long and 5mm in diameter.

QWhat is the speed range of the BL340?

The speed is listed as 6-17m/min, and it is set stepless.

QHow heavy is the BL340 for a 340kg rating?

The net weight is 23kg, a ratio of about 14.8 to 1 against the rated load.

QHow does the BL340 differ from the BL260?

The BL340 has a 340kg rating, a 2400W motor, 60m of rope and a 23kg weight, while the BL260 has a 260kg rating, a 2100W motor, 30m of rope and a 17kg weight.

QWhat makes the motor hard to damage?

It is an industrial grade permanent-magnet brushless motor with temperature protection, overload protection and enameled wire rated to 200 degrees Celsius.

QDoes the BL340 use a capacitor?

No. SCM control replaces the capacitor bank.

QWhat happens if the wire rope is reversed?

The limit switch triggers, protects the machine and stops it working.

QIs OEM service available for the BL340?

GOODIDEA states that it offers OEM and custom service for your brand.

Final Word

The BL340 is a 340kg brushless winch with a 60m rope, dual braking, a limit switch and a 23kg body. Buyers comparing it with the BL260 or the other brushless models can confirm capacity, rope length and supply voltage with GOODIDEA before ordering.
