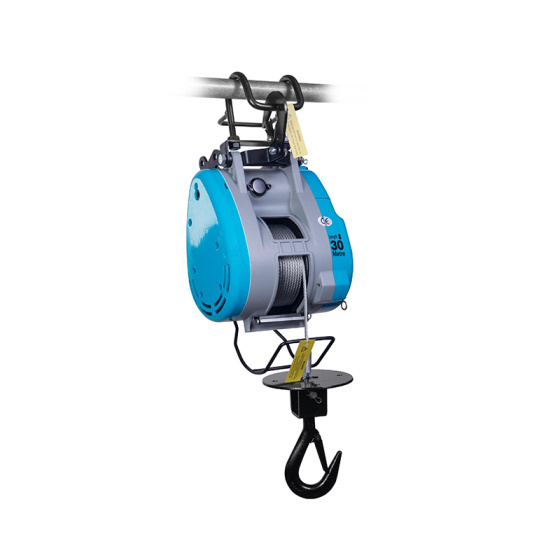

Model. M160/230/300 MINI ELECTRIC WINCH

capacity: 160kg/230kg/300kg

Built for hanging and lifting structural members, curtain-wall glass, advertising boards and other materials during storage or freight transportation. Compact in structure, high in efficiency, light in weight, easy to power and cost saving in daily use.

Item	MI60 Specification	M230 Specification	M300 Specification
Model	MI60	M230	M300
Voltage/frequency	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Speed	19m/min	19m/min	19m/min
Wire rope	30m (5mm × 30m)	30m (5mm × 30m)	30m (5mm × 30m)
Motor	1300W	1500W	1600W
Rated Load	160kg	230kg	300kg
Net weight	15kg	16kg	17kg

Model. M160/230/300 Mini Electric Winch is a single-phase wire rope winch built for hanging and lifting structural members, curtain-wall glass, advertising boards and other materials during storage or freight transportation. One model name covers three rated loads, 160kg for the M160, 230kg for the M230 and 300kg for the M300, all on 220V 50/60Hz at 19m/min with 30m of 5mm wire rope. GOODIDEA describes it as compact in structure, high in efficiency, light in weight, easy to power and cost saving in daily use, and this article explains the three versions and the protection built into each.

Three Capacities on One Platform

Instead of three separate models, GOODIDEA publishes the M160, M230 and M300 on a single specification table. Only motor power, rated load and net weight change from one version to the next, which makes the choice easy to read.

Item	M160 Specification	M230 Specification	M300 Specification
Model	M160	M230	M300
Voltage/frequency	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Speed	19m/min	19m/min	19m/min
Wire rope	30m (5mm x 30m)	30m (5mm x 30m)	30m (5mm x 30m)
Motor	1300W	1500W	1600W
Rated Load	160kg	230kg	300kg
Net weight	15kg	16kg	17kg

How the Three Versions Step Up

Going from the M160 to the M300 adds 140kg of rated load, about 88 percent more capacity, for only 2kg of extra net weight and 300W of extra motor power. Load per kilogram of machine rises from about 10.7 to 1 on the M160, to about 14.4 to 1 on the M230, to about 17.6 to 1 on the M300. Buyers who want the most capacity from the lightest unit can take that ladder to GOODIDEA when they decide which version to order.

What Drives the Hoist, and How Long Can It Run?

An industrial-grade permanent-magnet brushless motor carries the drive, and damage is not easily done to it. Voltage is single phase only, at 110V or 220V. Power output and efficiency run high, so long time working follows naturally. A temperature protection device, an overload protection device and stepless speed regulation come as part of the equipment, the enameled wire reaches a 200 degrees Celsius rating, and working capacity is up 50 percent against the ED series.

What Is Different About the Control Circuit?

Only an SCM controls it, on a circuit that holds no capacitor at all. Stable performance and a high power factor are the outcome, and plug and pull wiring keeps operation convenient with maintenance reliable, which GOODIDEA lists as a daily-use advantage.

What Happens if Power Fails Mid-Lift?

Braking is handled twice over. A mechanical ratchet takes one side of the job, resistive short-circuit control takes the other, and the pair forms a dual braking system. Motor durability comes from the sintered brake and its high friction coefficient, while braking happens immediately on power failure or winch failure, which keeps both safety and service life up.

How Is Over-Travel Prevented?

Once the hook rises to a certain lifting height, or once the wire rope reverses, the limit switch is triggered. The machine is protected and work stops.

Rope, Gear Train and Housing

Component	What is stated
Wire rope	Top brand import quality, safety factor 4 times that of ordinary machines
Gear train	High efficiency bevel drive reduction gear with special heat treatment, strength three times higher than ordinary products
Housing	One-piece aluminum alloy die-casting of strong toughness holding motor and gearbox
Machining	High precision CNC machining for smooth running and low noise
Finish	Automobile grade powder coating, compact overall

Higher-Capacity Option in the Same Series

The same M series at GOODIDEA also includes the M280/360/500 model, rated at 280kg, 360kg and 500kg. Buyers whose heaviest load is above 300kg can review that page, while the M160/230/300 covers loads up to 300kg.

Frequently Asked Questions

QHow many capacities does the M160/230/300 cover?

Three: 160kg, 230kg and 300kg.

QWhich version is the lightest?

The M160 has a net weight of 15kg, the M230 weighs 16kg and the M300 weighs 17kg.

QWhat are the motor powers of the three versions?

The M160 uses 1300W, the M230 uses 1500W and the M300 uses 1600W.

QIs the lifting speed different between versions?

No. All three versions list 19m/min.

QWhat supply does the M160/230/300 need?

The table lists 220V 50/60Hz, and the description states single phase only at 110V or 220V.

QDoes the winch brake when the power fails?

Yes. Braking happens immediately on power failure or winch failure.

QHow is the winch protected from over-travel?

The limit switch is triggered when the hook rises to a certain lifting height or the wire rope reverses.

QIs there a higher-capacity model in the same series?

Yes. The M280/360/500 is listed at 280kg, 360kg and 500kg.

Final Word

The M160/230/300 offers three rated loads from 160kg to 300kg on a 15kg to 17kg wire rope winch with dual braking and a limit switch. Buyers can match their heaviest load to a version and confirm the order details with GOODIDEA.
