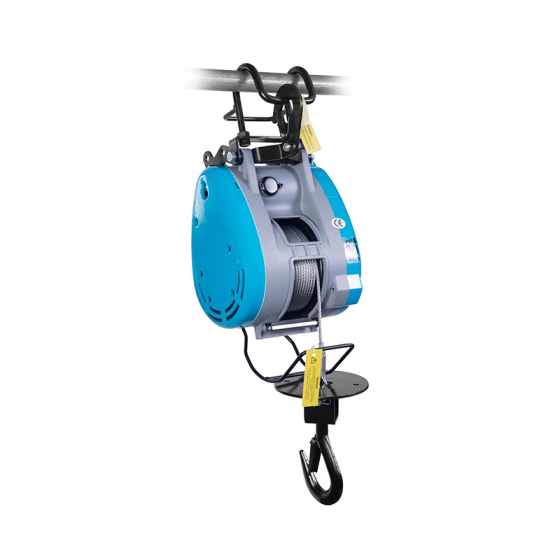

Model.S160/230/300 MINI ELECTRIC WINCH

capacity: 160kg/230kg/300kg

Item	SI60 Specification	S230 Specification	S300 Specification
Model	SI60	S230	S300
Voltage/frequency	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Speed	19m/min	19m/min	19m/min
Wire rope	30m (5mm × 30m)	30m (5mm × 30m)	30m (5mm × 30m)
Motor	1300W	1500W	1600W
Rated Load	160kg	230kg	300kg
Net weight	15kg	16kg	17kg

Model.S160/230/300 Mini Electric Winch is a single-phase wire rope winch for structures, curtain-wall glass, advertising boards and other materials handled in storage or freight transportation. Three rated loads share one platform, 160kg for the S160, 230kg for the S230 and 300kg for the S300, all at 19m/min on 220V 50/60Hz with 30m of 5mm wire rope. GOODIDEA lists it in its Mini Electric winch category, and this article covers the application, the drive and control systems and the safety features behind the three versions.

Application

The application statement from GOODIDEA names structures, curtain-wall glass, advertising boards and other materials handled in storage or freight transportation. It adds that the structure stays compact, efficiency stays high, weight stays low, the power supply is easy to work with, and cost is saved.

S160/230/300 Specifications

Item	S160 Specification	S230 Specification	S300 Specification
Model	S160	S230	S300
Voltage/frequency	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Speed	19m/min	19m/min	19m/min
Wire rope	30m (5mm x 30m)	30m (5mm x 30m)	30m (5mm x 30m)
Motor	1300W	1500W	1600W
Rated Load	160kg	230kg	300kg
Net weight	15kg	16kg	17kg

Reading the Three Steps

The S230 lifts 70kg more than the S160, about 44 percent more capacity, and the S300 lifts 70kg more than the S230, about 30 percent more. Across the whole range, net weight goes from 15kg to 17kg and motor power from 1300W to 1600W, so the S300 carries nearly twice the load of the S160 for only 2kg of extra machine weight. Speed and rope stay identical, which is why GOODIDEA can offer all three on one specification table.

Drive

The drive is an industrial-grade permanent-magnet brushless motor. Supply is single phase, and the buyer selects 110V or 220V. Rated duty is long time working, a duty that the pairing of high power with high efficiency makes possible. Overload and temperature protection are both provided, speed is set stepless, and enameled wire carries a 200 degrees Celsius rating. Working capacity sits 50 percent above the ED series.

Control

Capacitor-free construction is used, and an SCM does the controlling. Performance runs stable and the power factor runs high. Wiring is plug and pull, which makes operation convenient and maintenance reliable, a point GOODIDEA lists among the practical benefits of the S series.

Braking and Limit Protection

Two systems are fitted, mechanical ratchet braking and resistive short-circuit control. The sintered brake runs a high friction coefficient, and motor durability follows from it. When power fails or the winch faults, braking is immediate, so safety is high and service life long. At the set lifting height, or on reverse winding of the wire rope, the limit switch trips, the machine is protected and operation stops.

Rope, Reduction and Housing

Component	What is stated
Wire rope	Imported from a top brand, safety factor 4 times that of ordinary machines
Reduction	High efficiency bevel drive reduction gear with special heat treatment, strength 3 times that of ordinary products
Housing	Motor and gearbox share a one-piece aluminum alloy die-casting of strong toughness
Machining	CNC machining at high precision for smooth running and low noise
Finish	Automotive grade powder coating, compact footprint

Other Winches in the 160kg to 300kg Range

The Mini Electric winch category at GOODIDEA also lists the M160/230/300 and the T160/230/300 at the same three capacities, and the NS160/230 as a brushless option at 160kg and 230kg. Buyers who need a rating between 160kg and 300kg can compare these pages side by side.

Frequently Asked Questions

QWhat capacities does the S160/230/300 offer?

Three capacities: 160kg, 230kg and 300kg.

QWhich S version weighs the least?

The S160 has a net weight of 15kg, the S230 weighs 16kg and the S300 weighs 17kg.

QDo all three versions lift at the same speed?

Yes. All three list 19m/min.

QWhat motor does each version use?

The S160 uses 1300W, the S230 uses 1500W and the S300 uses 1600W.

QHow is the winch controlled?

An SCM does the controlling on a capacitor-free circuit, with plug and pull wiring.

QWhat does the sintered brake do?

It runs a high friction coefficient, and motor durability follows from it.

QHow does the winch protect the wire rope from reverse winding?

On reverse winding of the wire rope, the limit switch trips, the machine is protected and operation stops.

QIs OEM service available for the S series?

GOODIDEA states that it supplies this series with OEM and custom service for your brand.

Final Word

The S160/230/300 offers three ratings from 160kg to 300kg on a 15kg to 17kg winch with dual braking, a limit switch and a heat treated gear. Buyers can confirm the version and supply voltage with GOODIDEA before placing an order.
