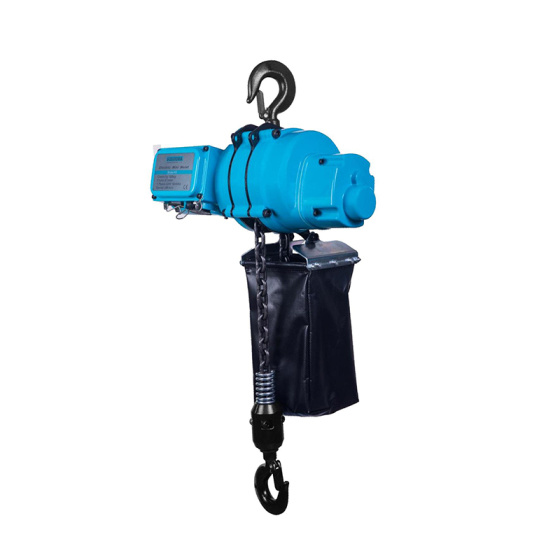

Model.H5 MINI ELECTRIC HOIST

Suitable for hanging and lifting the structure, curtain-wall glass, advertising board, and other materials for storage or freight transportation. It has the advantages of compact structure, high efficiency, light weight, and easy to use power supply, and also cost saving.

Item Specification
Model H5
Voltage/frequency 220V 50/60Hz
Speed 6m/min
Chain 6.3×19mm
Motor 1300W
Rated Load 500kg
  • Product description
Product description

USAGE
Suitable for lifting structural parts, curtain-wall glass, advertising boards and
similar materials during storage and transport. Compact, light and efficient, with
an easy-to-connect power supply that keeps running cost low.

KEY FEATURES

Motor
Industrial-grade brushless maglev motor. Two single-phase options: 110V / 220V.
High power, high efficiency, built for continuous work. Thermal protection,
overload protection, stepless speed control. Enameled wire rated to 200 °C.

Control
No capacitor. SCM-controlled circuit. Stable running, high power factor, plug-in
wiring, easy to service.

Brake
A braking system controls lifting and lowering and holds the load in place.

Safety
Upper-limit protection stops the hook at the top of its travel. Correct operation
and routine inspection are still required.

Chain
6.3 × 19 mm load chain. Rated capacity 500 kg. Vertical lifting only.

Gear
High-efficiency bevel reduction gear, heat-treated for up to 3× the strength of
standard gears.

Housing
Motor and gearbox sit in a compact aluminium-alloy body. The integrated design
keeps the unit small, which helps where installation space is tight.

Look at other electric hoists
Click to view more
Nantong Powerful Hoist Machinery Co., Ltd.
Need to consult?
Please describe your needs, and I will reply to you as soon as possible.
I agree to the processing of my personal data.*
500kg Mini Electric Hoist Model.H5 Industry knowledge

GOODIDEA supplies this product as part of its compact lifting equipment range. This compact 500 kg electric chain hoist is built in our Qidong factory for vertical lifting of curtain-wall glass, advertising boards, structural components and stored or freighted materials where a conventional crane is too large or too costly.

The H5 combines a 1300 W permanent magnet brushless motor, a compact aluminum alloy housing and a scored chain drive into a single-phase unit that needs no capacitor in the control circuit. It is positioned within our Mini Electric Hoist range as the mid-capacity, long-duration vertical lifting tool for facade and material-handling work.

Model.H5 technical specification

Specification Model.H5
Rated load 500 kg
Lifting speed 6 m/min
Motor 1300 W permanent-magnet brushless motor
Lifting chain 6.3 x 19 mm
Voltage / frequency 220V 50/60Hz; 110V available as a configuration
Control system SCM-based electronic control, capacitor-free circuit
Brake system Integrated brake for lifting and lowering control
Safety protection Upper hook travel limit, overload and temperature protection
Gear system High-efficiency bevel drive reduction gear, heat-treated
Housing Compact aluminum alloy motor and gearbox housing

Where the H5 works best

The H5 is a vertical lifting tool, not a trolley-mounted crane. It is designed for jobs where the hoist hangs directly above the load and the operator needs a simple, reliable way to lift, hold and lower materials.

Curtain-wall and glazing installation

lifting glass panels and framing members to position without a large tower crane.

Advertising board placement

controlled vertical movement of panels, frames and mounting hardware.

Structural and facade work

raising beams, brackets and pre-assembled sections during construction or retrofit.

Storage and freight handling

moving crates, machinery parts and packaged goods onto racks or transport levels.

Because the H5 runs from a standard single-phase supply, it fits sites where three-phase power is not available. The compact aluminum housing also keeps the hoist light enough for temporary rigging and repositioning between lifting points.

Motor and mechanical design

The H5 uses an industrial-grade permanent-magnet brushless motor with high power density and long running capability. The motor is specifically selected for duty cycles longer than a conventional universal-motor hoist can sustain.

Temperature protection

the winding is rated to 200 degrees C insulation class, with a protection device to reduce thermal damage risk.

Overload protection

helps guard the motor and chain against excessive working loads.

Stepless speed regulation

allows the operator to modulate lifting speed through the control system.

Heat-treated bevel gears

the reduction gear is case-hardened for higher surface strength and quieter operation.

The chain is 6.3 x 19 mm, matched to the 500 kg rated load and the drum/chain wheel geometry. We supply the chain length according to the hook-to-hook lifting height defined in your order.

Control, braking and safety functions

The H5 control system has no start capacitor, using a microcontroller-based (SCM) circuit that keeps the power factor high and reduces electrical failures common in capacitor-start hoists. Wiring uses plug-in connections so the hoist can be serviced without cutting or soldering cables.

Brake system

designed to control both lifting and lowering operations and hold the load when the motor is stopped.

Lifting limit protection

limits excessive upward hook travel to reduce the chance of the hook block striking the hoist body.

Stepless regulation

lets the operator reduce speed for precise positioning of glass or panels.

Reliable electrical interface

simplified terminal wiring shortens installation time and makes routine checks straightforward.

These functions are not a substitute for operator training. We provide the operating precautions in the documentation so your team understands the interaction between load control, limit switches and routine inspection.

Configuration and range position

The H5 is supplied in 220V 50/60Hz as standard, with a 110V single-phase option available for North American or Japanese project requirements. We can also adjust the chain length, control pendant lead and packaging to suit distribution, rental or OEM programs.

The same mini hoist platform covers lower and higher capacities in our factory lineup. For lighter duty, see Model.H2.5 MINI ELECTRIC HOIST; for heavier vertical loads, Model.H10 MINI ELECTRIC Chain HOIST extends the same design concept to a higher rated load.

When you order through us, the H5 is documented as part of the Mini Electric Hoist family, which keeps spare chain, hooks, pendants and service parts consistent across your installed base.

Installation, commissioning and maintenance

Installation begins with a secure suspension point above the working area. The hoist is suspended by its top hook or mounting eye, and the load hook is aligned below the center of gravity of the material to be lifted.

Electrical connection: connect the single-phase supply to the terminal block, confirm the voltage matches the nameplate, and check that the ground conductor is properly bonded.

Limit setting

adjust the upper lifting limit so the hook block stops before contacting the housing.

No-load test

run the hoist in both directions without a load and confirm the brake holds.

Rated-load test

lift a known load within the rated capacity and verify smooth travel and braking.

Routine maintenance is simple because there is no capacitor to replace and the plug-in wiring reduces electrical rework. Inspect the chain for wear, elongation and corrosion, check the hook latch and throat opening, and test limit and brake functions at intervals proportional to usage.

Quality control and project handoff

The H5 is produced under the same factory quality system as our other GOODIDEA hoists: incoming chain and motor components are checked, subassemblies are tested before final assembly, and each finished hoist is run before packing. Our factory follows ISO-aligned manufacturing practices, and our electric hoists are CE-marked and built to ASME-compatible design practice.

For OEM programs, we provide private-label marking, custom cartons, multilingual manuals and inspection documentation to match your brand. For project supply, we include the model-specific specification sheet, wiring information and operating precautions with the shipment.

Our quality record across the range is monitored with traceable production data, and warranty-claim levels are held below 0.1% in normal operation. If a service issue does appear, we work from the production batch record to identify the cause and supply replacement parts or guidance quickly.

Information we use to configure your solution

Send us the working point, material being lifted and production target, and we will prepare the H5 configuration and quotation around your site. The key inputs are:

Load and lifting height

maximum working load and hook-to-hook travel determine chain length and motor duty selection.

Voltage and frequency

220V 50/60Hz standard, 110V available for single-phase sites.

Duty profile

lifts per hour and average running time per lift so we can confirm the thermal capacity.

Mounting method

top hook suspension, fixed eye, or a custom bracket if needed.

Work environment

indoor or outdoor, temperature range, dust or moisture exposure.

OEM requirements

preferred marking, packaging language, manual format and private-label branding.

Frequently asked questions

QWhat can the Model.H5 lift?

The H5 has a rated load of 500 kg with a lifting speed of 6 m/min. It is intended for vertical lifting of facade materials, curtain-wall glass, advertising boards, structural components and general freight within the rated capacity.

QCan the H5 be supplied for 110V power?

Yes. The motor system supports both 110V and 220V single-phase input. Confirm the operating voltage and frequency when ordering so we set the wiring and nameplate correctly.

QHow does the hoist protect against overload and overtravel?

The H5 includes overload protection, a lifting limit that restricts excessive upward hook travel, and temperature protection on the motor. The brake system also holds the load when power is off.

QCan we private label the H5 for our brand?

Yes. As an OEM manufacturer, we can apply your brand marking, custom carton design, multi-language manuals and inspection documentation. Include your branding specifications in the inquiry.

QWhat chain length is provided?

We supply the lifting chain based on the hook-to-hook lifting height in your order. Provide the maximum lift height and clearance, and we will quote the correct chain length.

QWhat maintenance does the H5 require?

Periodically inspect the chain for wear and elongation, verify the hook latch and throat, test the brake and limit switches, check electrical connections, and keep the chain lightly lubricated. The capacitor-free control circuit reduces common electrical maintenance tasks.
