Model.H10 MINI ELECTRIC Chain HOIST

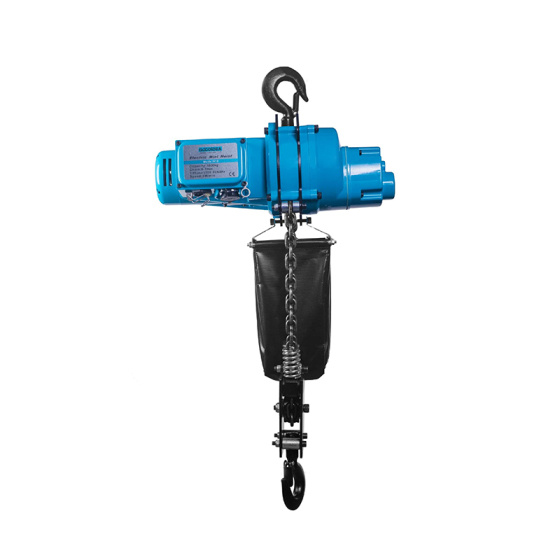

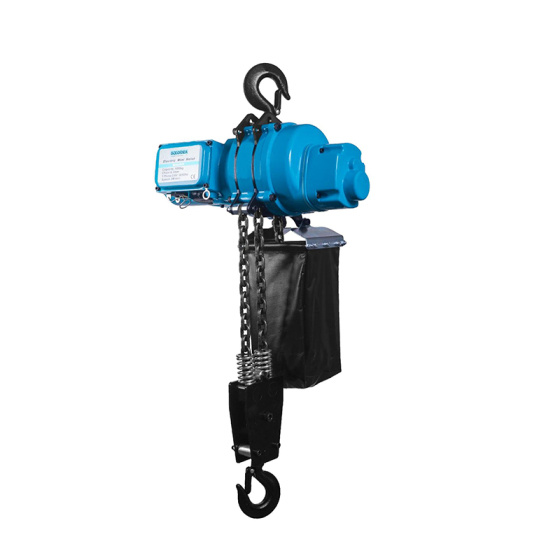

H10 mini electric chain hoist. 1000 kg rated capacity, 6.3 x 19 mm lifting chain, single-phase 110V or 220V, compact aluminum alloy body.
Suitable for hanging and lifting the structure, curtain-wall glass, advertising board, and other materials for storage or freight transportation. It has the advantages of compact structure, high efficiency, light weight, easy-to-use power supply, and also cost saving.

Item Specification
Model H10
Voltage/frequency 220V 50/60Hz
Speed 3m/min
Chain 6.3×19mm
Motor 1300W
Rated Load 1000kg
  • Product description
Product description

Why buyers specify the H10
- 1000 kg capacity on a 6.3 x 19 mm chain, sized for vertical material lifting
- Single-phase 110V or 220V, so no three-phase supply is needed on site
- Permanent magnet brushless maglev motor, built to industrial grade
- Stepless speed regulation, with temperature protection and overload protection
- 50% more working capacity than the ED series, on 200 °C rated enameled wire
- Lifting limit protection against excessive upward hook travel

Built detail by detail
Drive. Industrial-grade construction protects the permanent magnet brushless maglev motor from damage, and either single-phase voltage can be specified, 110V or 220V. Since power output and efficiency both run high, long time working is what the machine is built for rather than an occasional extreme. Temperature and overload protection are provided, speed regulation is stepless, and the enameled wire handles 200 °C. Against the ED series, the gain in working capacity is 50%.

Electronics. Capacitance is avoided altogether; an SCM governs the circuit. The result reads as stable performance with a high power factor, and plug and pull wiring is what makes operating and servicing the unit straightforward.

Braking. Because lifting and lowering both depend on it, the brake sits at the centre of load handling and of operational safety. Design attention went there first rather than last.

Limit protection. Upward hook travel is capped by a lifting limit protection system. Correct operation, load control and routine inspection complete the safety picture.

Chain. Vertical lifting is handled by a 6.3 x 19 mm chain, rated with the machine at 1000 kg.

Gears. A bevel drive reduction gear, high in efficiency, does the reducing. Heat treatment of a special kind is applied, and the strength that results runs three times beyond ordinary products.

Housing. Motor and gearbox are enclosed together in a compact aluminum alloy structure, mechanically protective and supportive of reliable operation. Keeping the two in one body is what holds the overall size down, and a small overall size is what allows installation where space and equipment dimensions are tight.

Where it fits: curtain-wall glass, structural members, advertising boards, and general material movement in storage or freight work.

Look at other electric hoists
Click to view more
Nantong Powerful Hoist Machinery Co., Ltd.
Need to consult?
Please describe your needs, and I will reply to you as soon as possible.
I agree to the processing of my personal data.*
1000kg Mini Electric Hoist Model.H10 Industry knowledge

The H10 is our 1000 kg portable electric chain hoist for vertical lifting on construction sites, curtain-wall installation, advertising-board erection, storage and freight handling. We manufacture the complete unit - brushless motor, heat-treated bevel gearbox, SCM control system, brake, lifting limit and 6.3 x 19 mm lifting chain - in our China factory, and package it in a compact aluminum alloy housing. As the Model.H10 MINI ELECTRIC Chain HOIST manufacturer, we supply it as a standard catalog unit or as an OEM base for custom chain length, voltage, control and branding.

Core specifications and engineering meaning

The values below are the standard H10 configuration. We adapt chain length, hook interface, voltage and control format to the working point of your project.

Parameter H10 Standard What it means for your application
Rated load 1000 kg Vertical lifting at the hook; top capacity in our mini electric hoist family
Lifting speed 3 m/min Controlled speed for positioning panels, glass and structural members
Motor 1300 W brushless, permanent magnet Industrial-grade motor designed for longer running periods
Voltage / frequency 220 V 50/60 Hz; 110 V option Single-phase supply must be confirmed before production
Lifting chain 6.3 x 19 mm Sized for the 1000 kg working load in vertical lift service
Gear system Heat-treated bevel drive Special heat treatment delivers roughly triple the strength of ordinary gearing
Housing Aluminum alloy, integrated Compact motor-gearbox package for confined installation spaces
Protective systems Lifting limit, overload, temperature, brake Designed to protect operator, load and machine

Application fit: where the H10 works

The H10 is specified for hanging and lifting work where the load must be raised vertically and held in position. Typical installations include curtain-wall glass lifting for facade construction, structural steel positioning, advertising board mounting, and loading or storage tasks in freight and warehousing environments.

Curtain-wall and facade work

lift glass and cladding panels from delivery position to the working floor.

Steel structure erection

hang and position beams, purlins and small structural members.

Advertising and signage

raise boards to mounting brackets and lower them for maintenance.

Warehousing and freight

move goods to mezzanine levels, racks and vehicle decks.

Workshop point lifting

portable lifting where overhead crane coverage is unavailable.

Because the H10 is a vertical lifting hoist, we recommend it where the load hangs directly beneath the hook or is guided during travel. For horizontal pulling and dragging, the Mini Electric winch range is the functional alternative.

Motor, drive and control architecture

The H10 uses a permanent-magnet brushless motor rated at 1300 W. The motor is industrial grade, unlikely to be easily damaged, and designed for high efficiency with a temperature protection device and an overload protection device. Windings use enameled wire rated at 200 degrees C, providing high thermal headroom for sustained operation and supporting a 50% duty cycle for production-level work.

The gear side uses a high-efficiency bevel drive reduction gear. This gear type undergoes special heat treatment, giving strength approximately three times that of ordinary products. The motor and gearbox are enclosed in a compact aluminum alloy housing that provides mechanical protection while keeping overall size suitable for confined installations.

The electric control system operates without a capacitor. An SCM-controlled circuit provides stable performance, a high power factor and plug-in wiring, which shortens commissioning time and simplifies later replacement of the control board.

Control, brake and safety systems

Lifting limit protection

prevents excessive upward hook travel.

Overload protection device

monitors the load against the rated capacity.

Temperature protection

protects the motor winding under thermal stress.

Brake system

controls both lifting and lowering operations.

Stepless speed regulation

allows controlled hook movement for precise positioning.

The braking mechanism plays a central role in load handling and operational safety. These protective systems are designed to support correct operation, not to replace it: proper operation, load control and routine inspection remain essential for safe lifting performance.

Range positioning and configuration options

The H10 is the 1000 kg top model in our mini electric hoist family. The Model.H2.5 MINI ELECTRIC HOIST covers 250 kg loads and the Model.H5 MINI ELECTRIC HOIST covers 500 kg; all three share the same brushless architecture, aluminum housing and SCM control approach. That commonality simplifies spare-part stocking for distributors and plant teams.

Within the H10 itself, we configure the following:

  • Chain length: matched to lift height and available headroom.
  • Voltage: 110 V or 220 V single phase.
  • Control format: standard pendant, or remote control for OEM programs.
  • Hook and suspension: standard top and bottom hooks, or a custom interface.
  • OEM deliverables: branding, carton design, language of the manual and wiring labels.
  • See the full Mini Electric Hoist range for working points below 1000 kg.

Installation, commissioning and maintenance

Each H10 leaves the factory complete, wired and test-run. On site, the unit is suspended from the top hook or a support bracket, the power lead is connected to the correct single-phase supply, and the chain is checked for twists before the first no-load run. Because the wiring is plug-in, the control board can be replaced without rewiring the motor.

Maintenance centers on the lifting chain, brake and limit switch. Inspect the chain regularly for elongation, wear and damaged links; verify brake stopping performance as part of routine maintenance; and test the lifting limit after any control or chain modification. We keep spare chains, hook assemblies, brake kits, motors and SCM boards available for the H10.

Quality assurance and project handover

GOODIDEA is a China OEM electric hoist manufacturer and portable hoist factory founded in 2005. The product line is engineered to ASME standards, produced under ISO-aligned quality procedures and CE-marked, with each unit tested for motor function, brake response, limit operation and rated-load lifting before shipment. Our published field record is below 0.1% warranty claims, and all partners have traceable records tied to live production quality data.

For OEM projects, we provide industrial design and engineering support from concept to finished product, and we invite partners to work with our team from R&D through production. Every hoist is delivered with the operating documentation and test evidence needed for your local acceptance.

Information we use to configure your solution

To prepare a precise H10 quotation and manufacturing configuration, send the working data below. We use these values to fix chain length, voltage, control format and optional interfaces.

  • Maximum load per lift and total required lift height
  • Required chain length and available headroom
  • Site power supply: voltage, frequency, phase and plug standard
  • Duty profile: lifts per hour, average running time per day
  • Mounting arrangement: fixed suspension, hook, trolley or support bracket
  • Load attachment: hook type, shackle or spreader beam
  • OEM scope: branding, packaging, manual language and required certificates

Frequently asked questions

QWhat is the rated capacity and lifting speed of the H10?

The H10 has a rated load of 1000 kg and a lifting speed of 3 m/min. It is driven by a 1300 W brushless motor and lifts vertically on a 6.3 x 19 mm chain.

QCan the H10 be supplied for 110 V sites?

Yes. The motor system offers both single-phase voltage choices, 110 V and 220 V. Confirm the supply voltage when placing the order so we build the hoist with the correct motor and control board.

QWhat protective systems are fitted to the H10?

The hoist includes a lifting limit protection system to prevent excessive upward hook travel, an overload protection device, motor temperature protection, and a brake system that controls lifting and lowering operations.

QIs the H10 suitable for continuous production work?

The brushless motor design supports a 50% duty cycle, and the winding insulation is rated at 200 degrees C. For high-cycle applications, advise us of the lifts per hour and daily running time so we can confirm the operating envelope.

QCan we order the H10 as an OEM product with our own brand?

Yes. As an OEM supplier, we configure chain length, voltage, control format, packaging and branding. Send your target working point and we will prepare the corresponding proposal.
