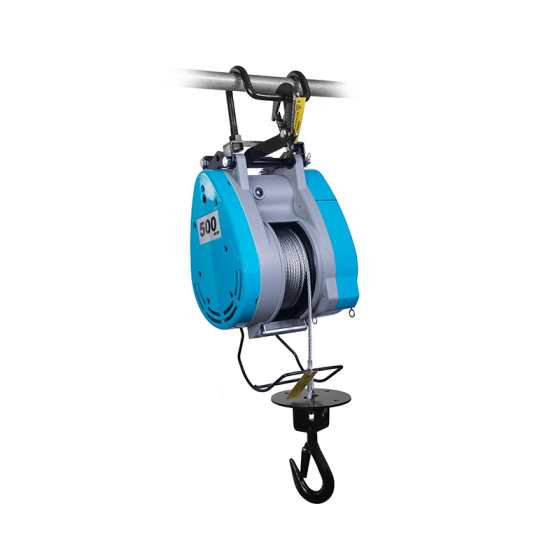

Model.T280/360/500 MINI ELECTRIC WINCH

capacity: 280kg/360kg/500kg

Item T280 Specification T360 Specification T500 Specification
Model T280 T360 T500
Voltage/frequency 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz
Speed 14m/min 13m/min 13m/min
Wire rope 30m (5mm × 60m) 30m (5mm × 60m) 30m (6mm × 30m)
Motor 1300W 1600W 1800W
Rated Load 280kg 360kg 500kg
Net weight 22kg 23kg 24kg
  • Product description
Product description

USAGE:
Suitable for hanging and lifting advertising boards, curtain-wall glass, structural members and similar loads in storage or freight transport. The frame is compact, the unit light, the running efficient; the power supply is easy to use and the running cost stays low.

Motor system:
Two single-phase voltages (110V/220V) are offered on an industrial-grade permanent magnet brushless maglev motor that resists damage. Continuous duty is the point: high power, high efficiency, long working hours. Stepless speed regulation sets the working speed, the enameled wire withstands 200℃, the working capacity is 50% higher than the ED series, and both a temperature protection device and an overload protection device are fitted.

Electric control system:
Control is capacitor-free and managed by the SCM, so performance stays stable and the power factor high. Wiring is plug and pull, so operation and maintenance stay convenient and reliable.

Brake system:
Mechanical ratchet braking and resistive short-circuit control work together as the dual braking system. The sintered brake carries a high friction coefficient, so on power failure or winch fault the load halts immediately and the motor is protected: high safety, long service life.

Safety system:
The limit switch trips once the hook reaches a set lifting height, or when the wire rope is reversed; the machine is protected and operation stops.

Cable specifications:
Wire rope is imported top brand stock with a safety factor of 4× ordinary machines.

Gear system:
Reduction runs through a bevel drive reduction gear of high efficiency, heat treated to a special process that leaves it three times the strength of ordinary products.

Main unit housing:
Motor and gearbox share one housing, die-cast in a single piece of aluminum alloy and tough by construction. Precision CNC machining is what keeps it running smoothly and quietly; the powder coated exterior is finished to the same grade as automobile paint. Overall the unit is compact in structure.

Look at other electric hoists
Click to view more
Nantong Powerful Hoist Machinery Co., Ltd.
Need to consult?
Please describe your needs, and I will reply to you as soon as possible.
I agree to the processing of my personal data.*
280/360/500kg Mini Electric Winch – T Series Industry knowledge

Model.T280/360/500 Mini Electric Winch is a single-phase wire rope winch for hanging and lifting advertising boards, curtain-wall glass, structural members and similar loads in storage or freight transport. It offers three rated loads, 280kg for the T280, 360kg for the T360 and 500kg for the T500, on a 220V 50/60Hz supply with net weights of 22kg, 23kg and 24kg. GOODIDEA describes the frame as compact, the unit as light and the running cost as low, and this article sets out the specification and the protection systems that come with each version.

Usage and Specification

The usage statement from GOODIDEA names advertising boards, curtain-wall glass, structural members and similar loads in storage or freight transport, and adds that the power supply is easy to use. The full specification table is below.

Item T280 Specification T360 Specification T500 Specification
Model T280 T360 T500
Voltage/frequency 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz
Speed 14m/min 13m/min 13m/min
Wire rope 5mm x 60m 5mm x 60m 6mm x 30m
Motor 1300W 1600W 1800W
Rated Load 280kg 360kg 500kg
Net weight 22kg 23kg 24kg

Choosing a Version by the Job

The three versions suit different jobs, and the numbers make the choice straightforward. The T280 is the fastest at 14m/min and the lightest at 22kg. The T360 adds 80kg of rated load and 300W of motor power for 1kg more weight. The T500 reaches 500kg with a 6mm rope, which is thicker than the 5mm rope on the other two. By motor power per kilogram of rated load, the T280 has about 4.6W, the T360 about 4.4W and the T500 about 3.6W, so GOODIDEA gives the highest rating the best capacity-to-power ratio.

Motor System

Two single-phase voltages, 110V and 220V, are offered on an industrial-grade permanent-magnet brushless motor that resists damage. Continuous duty is the point, with high power, high efficiency and long working hours. Stepless speed regulation sets the working speed, the enameled wire withstands 200 degrees Celsius, the working capacity is 50 percent higher than the ED series, and both a temperature protection device and an overload protection device are fitted.

Electric Control System

Control is capacitor-free and managed by the SCM, so performance stays stable and the power factor high. Wiring is plug and pull, so operation and maintenance stay convenient and reliable, a feature that GOODIDEA lists for all three versions.

Brake and Safety Systems

Mechanical ratchet braking and resistive short-circuit control work together as the dual braking system. The sintered brake carries a high friction coefficient, so on power failure or winch fault the load halts immediately and the motor is protected, giving high safety and long service life. The limit switch trips once the hook reaches a set lifting height, or when the wire rope is reversed, and then the machine is protected and operation stops.

Cable, Gear and Housing

Component What is stated
Cable Imported top brand wire rope, safety factor 4 times that of ordinary machines
Gear system High efficiency bevel drive reduction gear, heat treated to a special process, three times the strength of ordinary products
Housing Motor and gearbox share one housing, die-cast in a single piece of aluminum alloy
Machining Precision CNC machining for smooth and quiet running
Exterior Powder coated to the same grade as automobile paint, compact in structure overall

Same Capacities in Other Series

The Mini Electric winch category at GOODIDEA lists the M280/360/500 and the S280/360/500 at the same three capacities, plus the NS360/500 as a brushless option at 360kg and 500kg. Buyers can compare these pages when deciding which series suits their site.

Frequently Asked Questions

QWhich T version is the fastest?

The T280 lists 14m/min, and the T360 and T500 list 13m/min.

QWhat wire rope does the T500 carry?

The T500 carries 6mm rope, while the T280 and T360 carry 5mm rope.

QWhat is the heaviest T version?

The T500 has a net weight of 24kg, against 22kg for the T280 and 23kg for the T360.

QHow much more load does the T360 lift than the T280?

The T360 is rated at 360kg and the T280 at 280kg, a difference of 80kg.

QDoes the T280/360/500 run continuously?

Continuous duty is the design point, with high power, high efficiency and long working hours.

QWhat does the powder coating match?

The powder coated exterior is finished to the same grade as automobile paint.

QWhat happens if the wire rope is reversed?

The limit switch trips, the machine is protected and operation stops.

QIs OEM service available for the T series?

GOODIDEA states that it supplies this series with OEM and custom service for your brand.

Final Word

The T280/360/500 puts ratings of 280kg, 360kg and 500kg on a 22kg to 24kg single-phase winch with dual braking, a limit switch and a heat treated gear. Buyers can confirm rope size and version with GOODIDEA before ordering.
