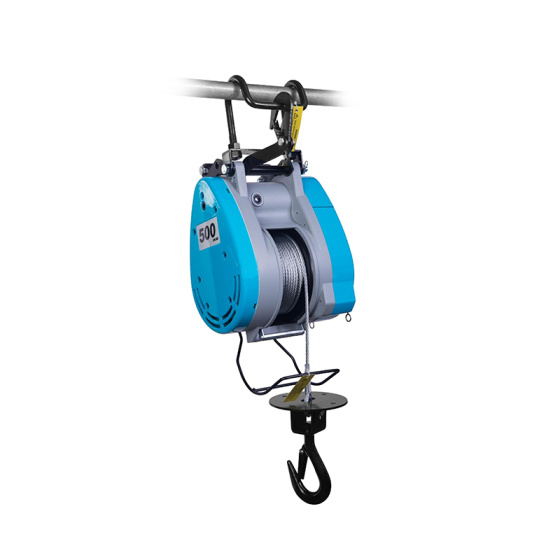

Model. M280/360/500 MINI ELECTRIC WINCH

capacity: 280kg/360kg/500kg

Lifting and hanging structural members, curtain-wall glass, advertising boards and other materials in storage or freight transportation is the job here. The machine brings compact structure, high efficiency, light weight, an easy-to-use power supply and cost saving to that job at the same time.

Item	M280 Specification	M360 Specification	M500 Specification
Model	M280	M360	M500
Voltage/frequency	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Speed	14m/min	13m/min	13m/min
Wire rope	30m (5mm × 60m)	30m (5mm × 60m)	30m (6mm × 30m)
Motor	1300W	1600W	1800W
Rated Load	280kg	360kg	500kg
Net weight	22kg	23kg	24kg

Model. M280/360/500 Mini Electric Winch is a single-phase wire rope winch for lifting and hanging structural members, curtain-wall glass, advertising boards and other materials in storage or freight transportation. One model name covers three rated loads, 280kg for the M280, 360kg for the M360 and 500kg for the M500, with a shared 220V 50/60Hz supply and net weights from 22kg to 24kg. GOODIDEA presents the machine as one that brings compact structure, high efficiency, light weight, an easy-to-use power supply and cost saving to the job at the same time, and this article explains the three versions and how each system is specified.

Direct Answer: Three Heavy-Duty Versions, One Table

The M280/360/500 is the higher-capacity step of the M series. The speed, rope and motor change from one version to the next, so the table published by GOODIDEA is the quickest way to compare them.

Item	M280 Specification	M360 Specification	M500 Specification
Model	M280	M360	M500
Voltage/frequency	220V 50/60Hz	220V 50/60Hz	220V 50/60Hz
Speed	14m/min	13m/min	13m/min
Wire rope	5mm x 60m	5mm x 60m	6mm x 30m
Motor	1300W	1600W	1800W
Rated Load	280kg	360kg	500kg
Net weight	22kg	23kg	24kg

What Changes Between M280, M360 and M500

From the M280 to the M500, rated load rises by 220kg, about 79 percent more capacity, while net weight rises by only 2kg and motor power by 500W. Load per kilogram of machine climbs from about 12.7 to 1 on the M280, to about 15.7 to 1 on the M360, to about 20.8 to 1 on the M500. The M500 also changes the rope to 6mm, a thicker rope for the highest rating, and GOODIDEA lists its speed as 13m/min against 14m/min on the M280.

Motor System: Specification and Service Result

The product page from GOODIDEA sets out each system as a specification followed by what it means in service. For the motor, the specification is a single-phase input at 110V or 220V, an industrial-grade permanent-magnet brushless motor, stepless speed regulation, a temperature protection device, an overload protection device, enameled wire rated to 200 degrees Celsius and working capacity 50 percent above the ED series. In service, the motor is not easily damaged, power and efficiency are both high, and long time working is what the design is aimed at.

Electric Control and Braking

The control specification is SCM control, no capacitor anywhere in the circuit and plug and pull wiring. In service, performance is stable and the power factor high, while operation stays convenient and maintenance stays reliable.

The brake specification is dual braking, combining resistive short-circuit control with mechanical ratchet braking, plus a sintered brake with a high friction coefficient. In service, the motor stays durable, and a power failure or winch failure brings immediate braking, which keeps safety high and service life long. GOODIDEA lists these as standard features of all three versions.

Safety System, Cable and Gears

System	Specification	Result in service
Safety system	Limit switch triggered when the wire rope is reversed or at a certain lifting height	The machine is protected and stops working rather than carrying the fault further
Cable	Imported top brand wire rope, safety factor 4 times that of ordinary machines	Higher safety margin on every lift
Gear system	High efficiency bevel drive reduction gear with special heat treatment	Strength three times that of ordinary products
Housing	One-piece aluminum alloy die-casting, high precision CNC machining, automobile grade powder coating	Strong toughness, smooth and low noise running, presentable appearance, compact unit

Related Winches With the Same Capacities

The Mini Electric winch category at GOODIDEA also lists the S280/360/500 and the T280/360/500 at the same three capacities, and the NS360/500 as a brushless option at 360kg and 500kg. Buyers who need 280kg, 360kg or 500kg can compare these pages before choosing a series.

Frequently Asked Questions

QHow many rated loads does the M280/360/500 cover?

Three: 280kg, 360kg and 500kg.

QWhich version has the thicker wire rope?

The M500 uses 6mm rope, and the M280 and M360 use 5mm rope.

QWhat is the lifting speed of each version?

The M280 lists 14m/min, and the M360 and M500 list 13m/min.

QHow much does the M500 weigh?

The net weight of the M500 is 24kg, against 22kg for the M280 and 23kg for the M360.

QWhat motor power does each version use?

The M280 uses 1300W, the M360 uses 1600W and the M500 uses 1800W.

QWhat stops the winch if the rope is wound the wrong way?

The limit switch is triggered when the wire rope is reversed, and the machine stops working.

QDoes the M280/360/500 accept 110V?

The table lists 220V 50/60Hz, and the description states a single-phase input at 110V or 220V.

QWhich other series have 280kg, 360kg and 500kg versions?

The S280/360/500 and the T280/360/500 are listed with the same capacities.

Final Word

The M280/360/500 gives buyers three capacities up to 500kg on a 22kg to 24kg single-phase winch with dual braking, a limit switch and heat treated gears. Buyers can confirm rope size, voltage and version with GOODIDEA before ordering.
