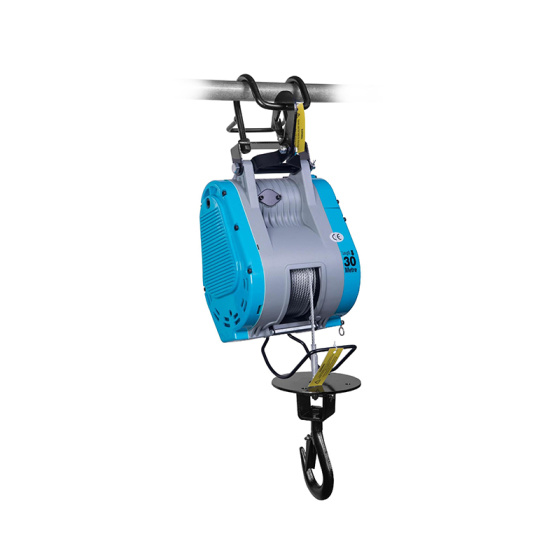

Model. CS170/240 MINI ELECTRIC WINCH

The CS170/240 is intended for lifting and positioning loads in building construction and maintenance: hanging structural components, curtain-wall glass panels, advertising boards, and materials being moved for storage or freight. The compact one-piece housing and easy-to-use power supply make it practical for temporary jobsites where the winch must be moved quickly between work positions.

It is a portable material winch, not a crane replacement. The unit is not designed or approved for raising or lowering people, and the working load should be limited to the rated capacity printed on the nameplate.

Values below describe the standard catalog configuration. The brushless motor family is also offered with 110 V single-phase supply; specify line voltage and required rope length with every inquiry.

The CS170/240 sits in the compact end of our mini electric winch line. The same 170 kg and 240 kg capacity family includes the Model. CM170/240 MINI ELECTRIC WINCH and the Model. CT170/240 MINI ELECTRIC WINCH, while the M, S and T models extend the range to 160 kg, 230 kg, 300 kg, 280 kg, 360 kg and 500 kg capacities. The wider Mini Electric Winch range is applied to curtain-wall installation, glass handling, sign erection and light industrial material movement.

For OEM projects, the winch can be branded and the control configuration specified at order review. We use the same production line and quality checks for standard and private-label versions.

The standard CS170/240 operates on 220 V 50/60 Hz single-phase supply, with a 110 V version available. The capacitor-free circuit improves power factor on light-duty site supplies, and stepless speed regulation allows controlled positioning of fragile loads such as glass panels.

Install the winch on a rigid, level support that can withstand the rated pull. Route the rope clear of sharp edges, keep the line perpendicular to the drum, and confirm that the hook and limit switch are correctly positioned before working at height.

For daily operation, inspect the wire rope for broken wires and corrosion, check the hook latch, verify limit switch operation, and test that the brake holds the rated load. Spare parts for the CS170/240 include wire rope, hook, limit switch, brake assembly and motor/gearbox components. Our factory team provides maintenance guidance and supports OEM machines throughout their working life.

GOODIDEA is a high-tech classified company in Nantong with more than 20 years of hoist and winch OEM experience. Our electric winches are CE marked and manufactured in an ISO-aligned quality system using ASME-based design and production practices. Finished winches are operationally tested before release to verify motor direction, brake response, limit switch function and rope termination.

For every order we confirm part number, voltage, rope length, branding and packing before production. The shipment includes the winch with its wire rope and control set, packed for export so the powder-coated housing arrives ready for installation.

To prepare a precise quotation and production configuration, send us the following project data:

• Rated load per winch and required lifting height
• Required rope length and end fitting: hook, clevis or bare rope
• Supply voltage and frequency: 110 V or 220 V, 50 or 60 Hz
• Working cycle: lifts per hour and average operating time per day
• Mounting position: vertical, horizontal or angled
• Application environment: outdoor exposure, dust and temperature range
• OEM branding, label language and packaging requirements
• Any certificate or inspection documentation required for the destination market

With this information, we specify the correct motor winding, rope configuration and control setup before production and confirm the delivery scope in writing.
