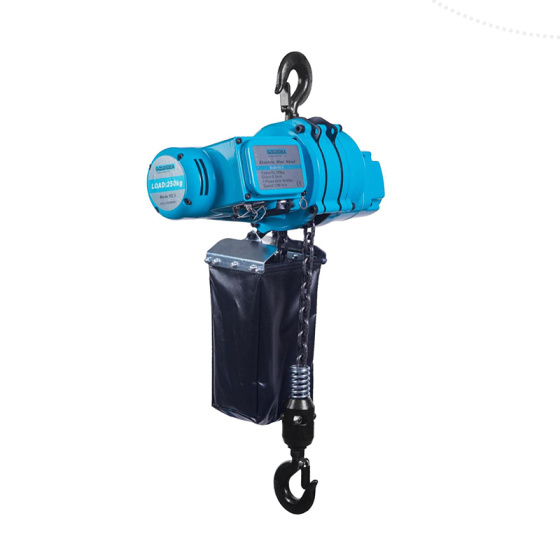

Model.H2.5 MINI ELECTRIC HOIST

Suitable for hanging and lifting the structure, curtain-wall glass,advertising board and other materials for storage or freight transpor-tation. It has the advantages of compact structure, high efficien-cy,light weight and easy to use power supply, and also cost saving.

Item Specification
Model H2.5
Voltage/frequency 220V 50/60Hz
Speed 12m/min
Chain 6.3×19mm
Motor 1300W
Rated Load 250kg
  • Product description
Product description

USAGE
Suitable for lifting structural components, curtain-wall glass, advertising boards
and similar materials during storage or freight handling. Compact, lightweight and
efficient, with an easy-to-connect power supply that helps reduce operating cost.

SPECIAL FEATURES

Motor system
Industrial-grade permanent-magnet brushless maglev motor, built for durability.
Available in two single-phase voltages (110V / 220V). High power and high
efficiency make it suitable for continuous operation. Fitted with thermal
protection, overload protection and stepless speed control. The enameled wire is
rated to 200 °C.

Electric control system
Capacitor-free circuit controlled by an SCM (single-chip microcomputer). Stable
performance, high power factor, plug-in wiring, and convenient, reliable operation
and maintenance.

Brake system
A braking system controls lifting and lowering and holds the load in position —
a key factor in load handling and operational safety.

Safety system
Upper-limit protection stops the hook from travelling too far up. Correct
operation, load control and routine inspection remain essential for safe lifting.

Lifting chain
Fitted with a 6.3 × 19 mm load chain; rated capacity 250 kg, for vertical lifting.

Gear system
High-efficiency bevel reduction gear, specially heat-treated for up to three
times the strength of conventional gears.

Main unit housing
Motor and gearbox are housed in a compact aluminium-alloy body that provides
mechanical protection and supports reliable operation. The integrated design keeps
the overall unit compact — an advantage where installation space is limited.

Look at other electric hoists
Click to view more
Nantong Powerful Hoist Machinery Co., Ltd.
Need to consult?
Please describe your needs, and I will reply to you as soon as possible.
I agree to the processing of my personal data.*
250kg Mini Electric Hoist Model.H2.5 Industry knowledge

Model.H2.5 Mini Electric Hoist is a single-phase electric chain hoist rated at 250kg, designed for hanging and lifting structural members, curtain-wall glass, advertising boards and other materials for storage or freight transportation. It runs on 220V 50/60Hz, lifts at 12m/min with a 1300W motor and uses a 6.3 x 19mm lifting chain. GOODIDEA lists it in its Mini Electric Hoist category, and this article explains what the hoist offers, how its protection features work and where it fits in the product range.

Direct Answer: A 250kg Chain Hoist on Ordinary Power

The H2.5 is for buyers who want a compact chain hoist instead of a wire rope winch. According to GOODIDEA, its advantages are compact structure, high efficiency, light weight, an easy to use power supply and cost saving. The table below lists every specification published for the model.

Item Specification
Model H2.5
Voltage/frequency 220V 50/60Hz
Speed 12m/min
Chain 6.3 x 19mm
Motor 1300W
Rated Load 250kg

Intended Use

The usage statement from GOODIDEA names four kinds of load: structures, curtain-wall glass, advertising boards and other materials for storage or freight transportation. A hoist with a chain suits vertical lifting jobs of this kind, where the load is raised, held and lowered at a controlled pace.

  • Structures
  • Curtain-wall glass
  • Advertising boards
  • Other materials for storage or freight transportation

Motor System

The H2.5 uses a permanent-magnet brushless motor of industrial grade that is not easily damaged. Two single-phase voltages, 110V and 220V, are available to choose from. High power and high efficiency make the motor suitable for long time working. The hoist features a temperature protection device, an overload protection device and stepless speed regulation, and the enameled wire can reach 200 degrees Celsius, with production level increased by ED50 percent as stated by GOODIDEA.

Electric Control System

The circuit has no capacitor and is controlled by an SCM. The stated results are stable performance, a high power factor, plug and pull wiring, and convenient and reliable operation and maintenance. For a hoist that may be moved from one job to another, plug and pull wiring is the feature that GOODIDEA highlights for fast setup.

Brake and Lifting Limit Protection

The hoist incorporates a braking system designed to control lifting and lowering operations, and the braking mechanism plays an important role in load handling and operational safety. A lifting limit protection system is also built in to help prevent excessive upward hook travel. The manufacturer adds that proper operation, load control and routine inspection are essential for safe lifting performance.

Chain, Gear and Housing

Component What is stated
Lifting chain 6.3 x 19mm chain for vertical material lifting
Gear system High efficiency bevel drive reduction gear with special heat treatment, strength three times higher than ordinary products
Main unit housing Motor and gearbox housed in a compact aluminum alloy structure for mechanical protection and support
Overall design Integrated housing keeps the overall design compact for installations where equipment size and space matter

Where the H2.5 Sits in the Hoist Range

The Mini Electric Hoist category at GOODIDEA lists the H2.5, the H5 and the H10. The H10 is listed as a mini electric chain hoist with a 1000kg rated capacity and a 6.3 x 19mm lifting chain, so the H2.5 at 250kg is the lighter option for jobs that do not need that rating. All three share the same usage description for structures, curtain-wall glass and advertising boards.

Frequently Asked Questions

QWhat is the rated load of the H2.5 mini electric hoist?

The rated load is 250kg.

QWhat lifting speed does the H2.5 have?

The listed speed is 12m/min, and stepless speed regulation is built in.

QDoes the H2.5 use a chain or a wire rope?

It uses a lifting chain with a size of 6.3 x 19mm.

QWhat motor power does the H2.5 have?

The motor is rated at 1300W and is a permanent-magnet brushless motor.

QCan the hoist be powered by 110V?

The specification table lists 220V 50/60Hz. The product description states that two single-phase voltages, 110V and 220V, are available to choose from.

QHow does the H2.5 prevent the hook from rising too far?

A lifting limit protection system helps prevent excessive upward hook travel.

QIs the H2.5 suitable for long working periods?

The description states that high power and high efficiency make the motor suitable for long time working, with temperature and overload protection.

QIs OEM service available for the H2.5?

GOODIDEA states that it supplies single phase electric chain hoists with OEM and custom service for your brand.

Final Word

The H2.5 is a 250kg single-phase chain hoist with a 12m/min speed, a 1300W brushless motor, a lifting limit protection system and a compact aluminum alloy housing. Buyers can confirm voltage, chain and capacity details with GOODIDEA before ordering.
