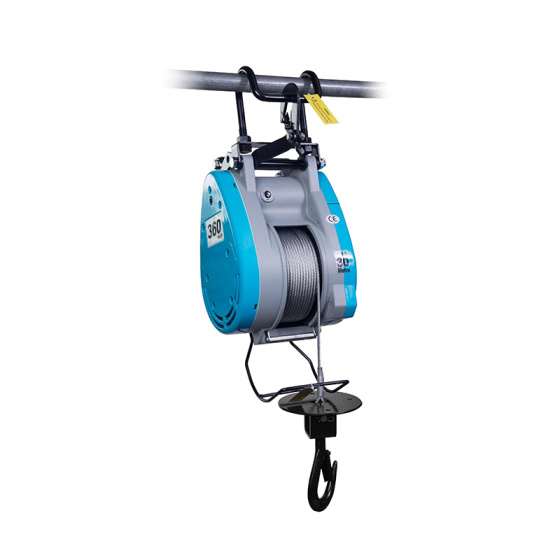

Model.S280/360/500 MINI ELECTRIC WINCH

capacity: 280kg/360kg/500kg

Industrial Electric Winch, 110V/220V Single Phase, for Structural Members, Curtain-Wall Glass and Advertising Boards

Item S280 Specification S360 Specification S500 Specification
Model S280 S360 S500
Voltage/frequency 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz
Speed 14m/min 13m/min 13m/min
Wire rope 30m (5mm × 60m) 30m (5mm × 60m) 30m (6mm × 30m)
Motor 1300W 1600W 1800W
Rated Load 280kg 360kg 500kg
Net weight 22kg 23kg 24kg
  • Product description
Product description

Braking comes first on this machine, because a winch is only as good as its ability to stop. The dual braking system pairs mechanical ratchet braking with resistive short-circuit control. The brake itself is a sintered brake with a high friction coefficient, so the motor stays durable and the load is held the moment power fails or the winch faults. That is where the safety margin and the long service life come from.

Limit protection covers the two ways a lift usually goes wrong. The limit switch trips once the hook reaches a set lifting height, and it trips again when the wire rope is reversed. Either signal stops the machine before the mechanism or the rope takes damage.

The reduction gear is a high efficiency bevel drive unit. Every gear set receives special heat treatment, which gives it three times the strength of ordinary products. That is why the transmission survives repeated heavy lifts without losing efficiency.

Motor and gearbox share a single housing, a one-piece aluminum alloy die-casting with strong toughness. CNC machining to high precision keeps the running smooth and the noise low. The surface carries an automotive grade powder coated finish, so it holds up on site and looks right on a finished installation.

Drive is an industrial-grade permanent magnet brushless maglev motor. Brushless by design, therefore not easily damaged, and built to run long hours at high power and high efficiency. Buyers pick single-phase 110V or 220V. A temperature protection device and an overload protection device watch the winding, stepless speed regulation sets the working speed, and the enameled wire is rated to 200°C. Working capacity sits 50% above the ED series.

Control carries no capacitor and runs on the SCM. Together they deliver stable performance and a high power factor, while plug and pull wiring keeps operation and maintenance convenient and reliable.

Rope is a top brand imported wire rope, and its safety factor is 4 times that of ordinary machines.

Compact structure, high efficiency and light weight are matched by an easy-to-use power supply and cost saving in service. That is what makes the unit suitable for hanging and lifting structural members, curtain-wall glass, advertising boards and other materials in storage or freight transportation.

Four reasons buyers specify it:
- It stops on its own, on power loss, on over-height and on reverse winding.
- It keeps lifting, hour after hour, on a single-phase supply.
- It holds alignment under load, because the gear is heat treated and the housing is machined as one piece.
- It arrives finished, not painted over, with an automotive grade surface.

Look at other electric hoists
Click to view more
Nantong Powerful Hoist Machinery Co., Ltd.
Need to consult?
Please describe your needs, and I will reply to you as soon as possible.
I agree to the processing of my personal data.*
280/360/500kg Mini Electric Winch – S Series Industry knowledge

Model.S280/360/500 Mini Electric Winch is an industrial electric winch for single-phase 110V or 220V supply, built for structural members, curtain-wall glass and advertising boards. It covers three rated loads, 280kg for the S280, 360kg for the S360 and 500kg for the S500, and the net weight stays between 22kg and 24kg. GOODIDEA lists it in its Mini Electric winch category, and this article follows the order the product page itself uses, starting with braking, because a winch is only as good as its ability to stop.

Braking Comes First

The dual braking system pairs mechanical ratchet braking with resistive short-circuit control. The brake itself is a sintered brake with a high friction coefficient, so the motor stays durable and the load is held the moment power fails or the winch faults. That is where the safety margin and the long service life come from, according to GOODIDEA.

Limit Protection Covers Two Failures

The limit switch trips once the hook reaches a set lifting height, and it trips again when the wire rope is reversed. Either signal stops the machine before the mechanism or the rope takes damage.

S280/360/500 Specifications

Item S280 Specification S360 Specification S500 Specification
Model S280 S360 S500
Voltage/frequency 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz
Speed 14m/min 13m/min 13m/min
Wire rope 5mm x 60m 5mm x 60m 6mm x 30m
Motor 1300W 1600W 1800W
Rated Load 280kg 360kg 500kg
Net weight 22kg 23kg 24kg

Stepping From S280 to S500

Moving from the S280 to the S360 adds 80kg of rated load, about 29 percent, and moving on to the S500 adds another 140kg, about 39 percent. Motor power steps up by 300W and then 200W, while net weight changes by just 1kg each time. For buyers who need the highest rating, GOODIDEA offers the S500 at 500kg on 24kg of machine weight, with a 6mm rope in place of the 5mm rope used on the other two versions.

Reduction Gear and Housing

The reduction gear is a high efficiency bevel drive unit, and every gear set receives special heat treatment, which gives it three times the strength of ordinary products. Motor and gearbox share a single housing, a one-piece aluminum alloy die-casting with strong toughness. CNC machining to high precision keeps the running smooth and the noise low, and the surface carries an automotive grade powder coated finish. The wire rope is a top brand import with a safety factor 4 times that of ordinary machines.

Drive and Control

The drive is an industrial-grade permanent-magnet brushless motor, built to run long hours at high power and high efficiency. Buyers pick single-phase 110V or 220V. A temperature protection device and an overload protection device watch the winding, stepless speed regulation sets the working speed, and the enameled wire is rated to 200 degrees Celsius, putting working capacity 50 percent above the ED series. Control carries no capacitor and runs on an SCM, giving stable performance, a high power factor and plug and pull wiring that keeps operation and maintenance convenient. GOODIDEA lists all of this as standard.

Four Reasons Buyers Specify It

  • It stops on its own, on power loss, on over-height and on reverse winding.
  • It keeps lifting, hour after hour, on a single-phase supply.
  • It holds alignment under load, because the gear is heat treated and the housing is machined as one piece.
  • It arrives finished, with an automotive grade surface.

Frequently Asked Questions

QWhat does the S280/360/500 lift?

It is designed for structural members, curtain-wall glass and advertising boards, and the page also lists other materials in storage or freight transportation.

QWhich S version uses the 6mm wire rope?

The S500 uses 6mm x 30m rope. The S280 and S360 use 5mm x 60m rope.

QHow many kilograms does the S500 weigh?

The net weight of the S500 is 24kg.

QWhat is the speed of the S280?

The S280 lists 14m/min, and the S360 and S500 list 13m/min.

QWhat holds the load if power is lost?

The dual braking system with its sintered brake holds the load the moment power fails or the winch faults.

QHow strong is the heat treated gear?

Three times the strength of ordinary products.

QCan the S280/360/500 run on a single-phase supply?

Yes. It is an industrial electric winch for single-phase 110V or 220V supply, and the table lists 220V 50/60Hz.

QWhat is the finish of the housing?

The one-piece aluminum alloy die-casting carries an automotive grade powder coated finish.

Final Word

The S280/360/500 combines dual braking, a double-trigger limit switch and a heat treated gear in a 22kg to 24kg winch rated up to 500kg. Buyers can send their load, rope and voltage needs to GOODIDEA to confirm the right version.
