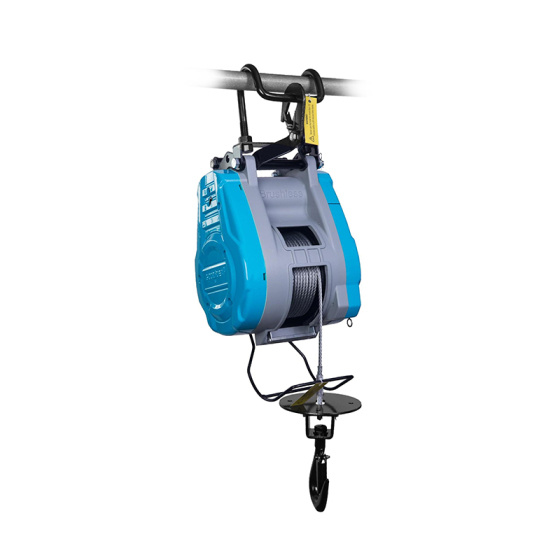

Model. BL170 MINI BRUSHLESS ELECTRIC WINCH

We designed this winch for short-cycle vertical handling in construction and storage work where a full-size hoist is too heavy or too slow to mobilize. The BL170 is a machine for controlled lifting, hanging and lowering tasks, not for personnel lifting or high-frequency crane cycles.

• Curtain-wall glass and facade components
• Structural steel members and aluminium frames
• Advertising boards, signs and display structures
• Warehouse racking, freight handling and storage lifting
• Small plant maintenance and installation work
• OEM compact winch programs for distributor brands

The BL170 uses an industrial-grade brushless motor. It is more tolerant of rough handling than a traditional brushed motor, and the absence of brushes removes a common wear point. With 1700 W on a single-phase supply, the winch can pull a 170 kg rated load without requiring three-phase power.

Control is handled by a capacitor-free SCM circuit. This arrangement keeps the power factor high and gives stable performance across the speed range. It also simplifies wiring: plug-in connections make installation and maintenance more direct than a capacitor-based circuit.

The brushless motor is paired with enameled wire rated to 200 degrees C. That temperature class gives the machine a higher continuous working capacity than our standard ED-series units while the integrated temperature protection guards against sustained abuse.

Safety comes from two independent actions. A mechanical ratchet brake holds the drum when the motor stops, and resistive short-circuit braking responds when power is cut. The sintered brake operates at a high friction coefficient, extends motor durability, and brings the drum to a stop on power failure or machine failure. That is why the BL170 can be used for hanging loads with confidence.

Mount the BL170 to a rigid beam, column or approved anchor point using a correctly sized shackle or hook. Keep the rope aligned over the load and avoid sharp edges that can crush or abrade the wire. Check the rope before each shift and replace it when broken wires, significant wear or diameter reduction are visible.

The limit switch is a final protection device, not a routine stopping mechanism. Operators should stop the winch before the switch operates. For the 220 V version, use a cable cross-section suitable for 1700 W; when using a 110 V supply, increase the cross-section proportionally. After use, store the winch in a dry place and inspect the sintered brake, rope anchoring point and limit-switch operation as part of the scheduled maintenance routine.

GOODIDEA is a supplier of compact lifting equipment, a China OEM winch and hoist manufacturer with 20 years of industry experience. We develop and manufacture electric hoists and winches for professional brands and for small to mid-size companies and retailers worldwide. Our production quality data is traceable per partner order, and warranty claims across the current partner base are below 0.1%.

The BL170 is engineered with reference to ISO and CE requirements and manufactured to ASME-aligned practice. As a factory, we also support OEM configuration: branding, voltage variant, rope length, plug type and packaging can be reviewed against your market requirements during project setup.

Every BL170 quotation starts with the working point, not just the catalogue specification. Add these details to your enquiry so we can confirm the correct version:

• Application and maximum load weight
• Mounting arrangement: fixed beam, floor anchor, trolley or custom bracket
• Required lift height and drum rope length
• Site voltage, frequency and plug standard
• Duty cycle: lifts per hour and continuous running time
• Ambient conditions: dust, humidity, outdoor exposure
• Target market approvals and compliance documentation
• OEM branding, packaging and labelling requirements
