USAGE:
Suitable for hanging and lifting the structure, curtain-wall glass,advertising board and other materials for storage or freight transpor-tation. It has the advantages of compact structure, high efficien-cy,light weight and easy to use power supply, and also cost saving.
SPECIAL FEATURES:

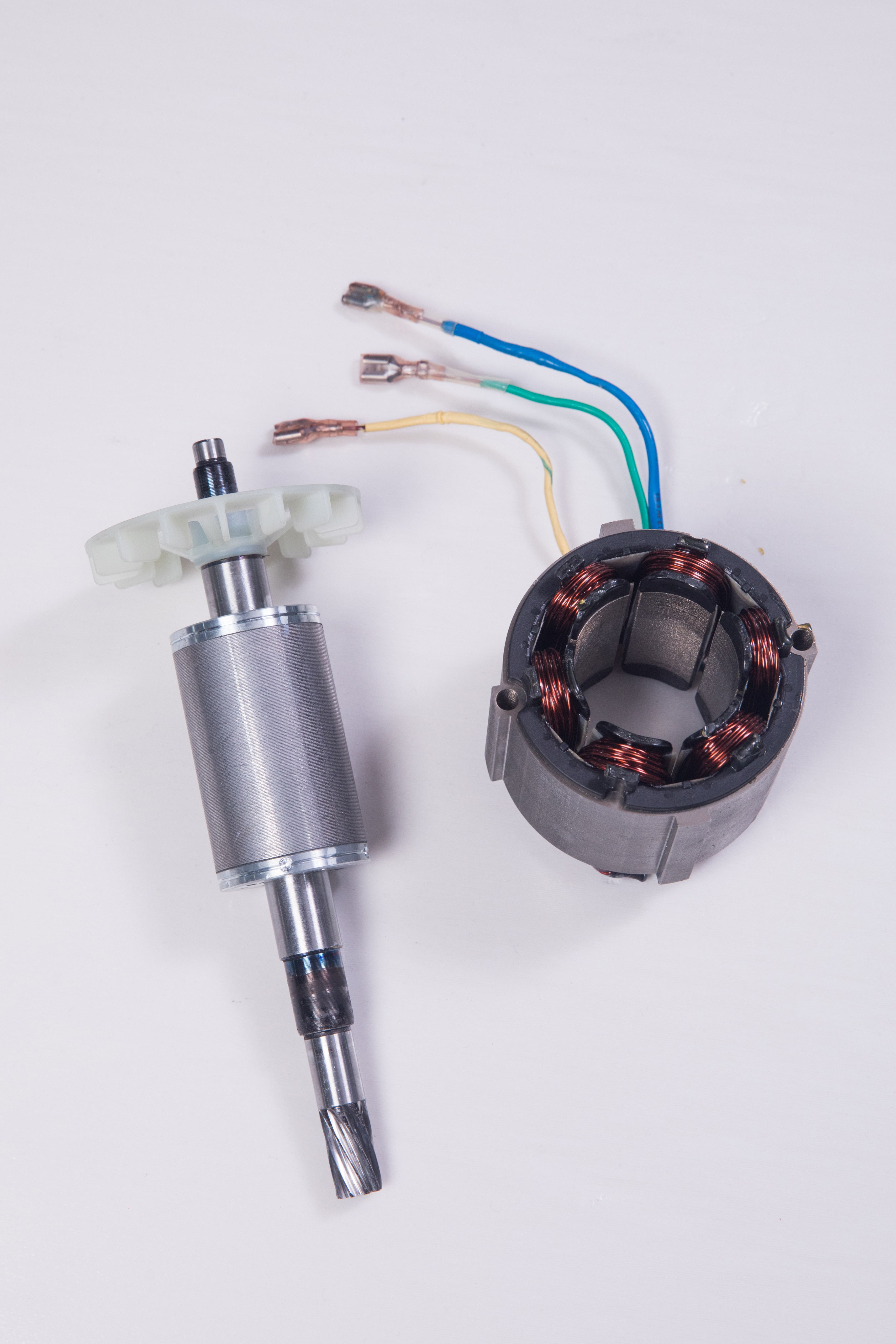

Motor system:
Permanent magnet brushless maglev motor, which is Industrialgrade, not easily damaged with two single-phase voltage(110V/220V) to choose. With high power and high efficiency, it'ssuitable for long time working. It features temperature protectiondevice, overload protection device and stepless speed regulation.The temperature of the enameled wire can reach 200℃ and produc-tion levelincreased by ED50%.
Electric control system:
ts circuit has no capacitor, and controlled by SCM. It features stableperformance, high power factor, plug and pull wiring, convenientand reliable operation and maintenance.
Brake system:
The dual braking system uses mechanical ratchet braking and resis-tive short circuit control. The high friction coefficient sintered brakemakes the motor durable and can be immediately braked in case ofpower failure or winch failure which makes motor high safety andong service life.
safety system:
When the hook rises to a certain lifting height or when the wire ropeis reversed, the limit switch will be triggered to protect the machineand stop machine from working. Cable specifications: Using top brand imported wire rope, the safety factor is 4 times thatof ordinary machines. Gear system: Use high efficiency bevel drive reduction gear.This type of gearundergoes special heat treatment,and its strength is three timeshigher than ordinary products.
Main unit housing:
The housing of motor and gear box is one-piece aluminum alloydie-casting istructure with strong toughness. it is machined by cNcwith high precision, which make the running of winch smooth andlow noise. The surface of housing is powder coated, which grade issame as automobile with nice appearance. lt also features compact Technical Parameter
